[Chart:Gauge]???

这篇文章介绍的是如何制作仪表图

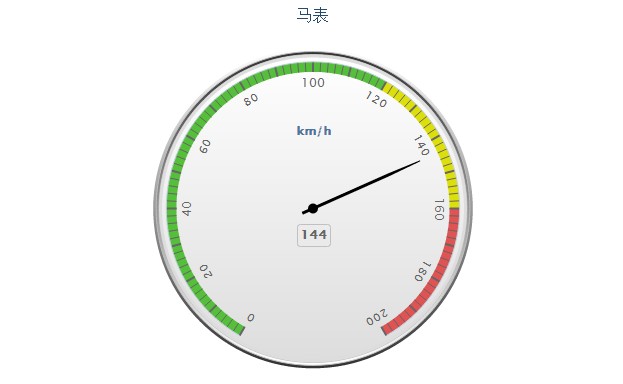

如下图是常见的马表图，考虑以下几个重点

function onLoad(e){
    var sf = this;
	if (!sf.renderer.forExport) {
	    setInterval(function () {
	        var record = $('ds').getCurrentRecord(),
	        	y = record.get('speed'),
	            newVal = y + Math.round((Math.random() - 0.5) * 20);
	        if (newVal >= 0 && newVal <= 200) {
		        record.set('speed',newVal);
	        }
	    }, 3000);
	}
}


<a:dataSets>
    <a:dataSet id="ds">
        <a:datas>
            <a:record speed="80"/>
        </a:datas>
        <a:fields>
            <a:field name="speed" datatype="int"/>
        </a:fields>
    </a:dataSet>
</a:dataSets>
<a:chart bindTarget="ds" plotBackgroundColor="null" plotBackgroundImage="null" plotBorderWidth="0" plotShadow="false" type="gauge">
    <a:title text="马表"/>
    <a:yAxis>
        <a:yAxi name="speed" max="200" min="0" minorTickColor="#666" minorTickInterval="auto"
                        minorTickLength="10" minorTickPosition="inside" minorTickWidth="1" tickColor="#666" tickLength="10"
                        tickPixelInterval="30" tickPosition="inside" tickWidth="2">
            <a:title text="km/h"/>
            <a:labels rotation="auto" step="2"/>
            <a:plotBands>
                <a:plotBand color="#55BF3B" from="0" to="120"/>
                <a:plotBand color="#DDDF0D" from="120" to="160"/>
                <a:plotBand color="#DF5353" from="160" to="200"/>
            </a:plotBands>
        </a:yAxi>
    </a:yAxis>
    <a:pane endAngle="150" startAngle="-150">
        <a:backgrounds>
            <a:background borderWidth="0" outerRadius="109%">
                <a:backgroundColor linearGradient="0,0,0,1" stops="[0,&apos;#FFF&apos;],[1,&apos;#333&apos;]"/>
            </a:background>
            <a:background borderWidth="1" outerRadius="107%">
                <a:backgroundColor linearGradient="0,0,0,1" stops="[0,&apos;#333&apos;],[1,&apos;#FFF&apos;]"/>
            </a:background>
            <a:background/>
            <a:background backgroundColor="#DDD" borderWidth="0" innerRadius="103%" outerRadius="105%"/>
        </a:backgrounds>
    </a:pane>
    <a:events>
    	<a:event name="load" handler="onLoad" />
    </a:events>
</a:chart>
